| Art. no. | AR2442WH |
| Colour / surface | white |

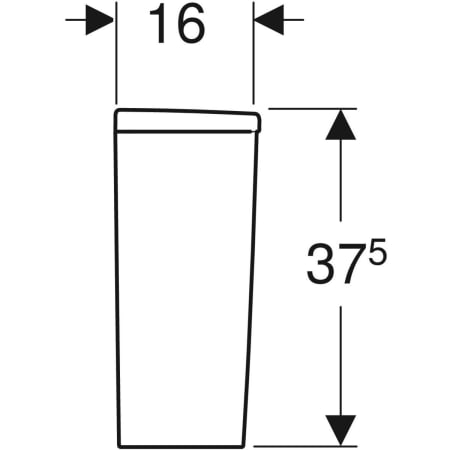

| B | 37.5 cm |
Twyford Alcona exposed cistern, close-coupled, dual flush, bottom water supply connection, square design
My list (0)
Technical data
Flush volume, factory setting 4 / 2.6 l |
Full flush volume, adjustment range 4 / 6 l |
Flush volume small, adjustment range 2.6 / 4 l |
Product material Vitreous china |
Flush volume, factory setting 4 / 2.6 l |
Full flush volume, adjustment range 4 / 6 l |
Flush volume small, adjustment range 2.6 / 4 l |
Product material Vitreous china |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Exposed cistern, close-coupled
Mechanism
To order additionally
Fastening material for rear wall
Can be combined with
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Declaration of performance | DoP10 WCs | EN and 29 others | |
Declaration of performance | DoP10 WCs | EN | |
Environmental product declaration | Ceramic appliance | - | |
Installation instructions | Type 240 flush valve, for dual flush | - | |
Installation instructions | Fill valve type 380AG | EN | |
Installation notice | Flush valve settings | - | |
Maintenance manual | Type 240 flush valve | - | |
Maintenance manual | Type 323 fill valve | - | |
Technical data sheet | - |
DoP10 WCs
EN and 29 others
DoP10 WCs
EN
Ceramic appliance
Type 240 flush valve, for dual flush
Fill valve type 380AG
EN
Flush valve settings
Type 240 flush valve
Type 323 fill valve
Other products
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 136.760.00.1 | Geberit Type 323AG fill valve, bottom water supply connection, 1/2″, nipple made of plastic | 136.762.00.1, 281.221.00.1, 281.222.00.1, ZP6425XX | For AR2346WH |
| 2 | 136.909.21.2 | Geberit Type 240 flush valve, dual flush: chrome / glossy | 136.909.21.1 | |
| 2 | Go to the spare parts page: Flush valves type 240, dual flush |
