Replaces art. no. GGAL03WH
| Art. no. | GGAL04WH |
| Colour / surface | white |
| B | 37.5 cm |

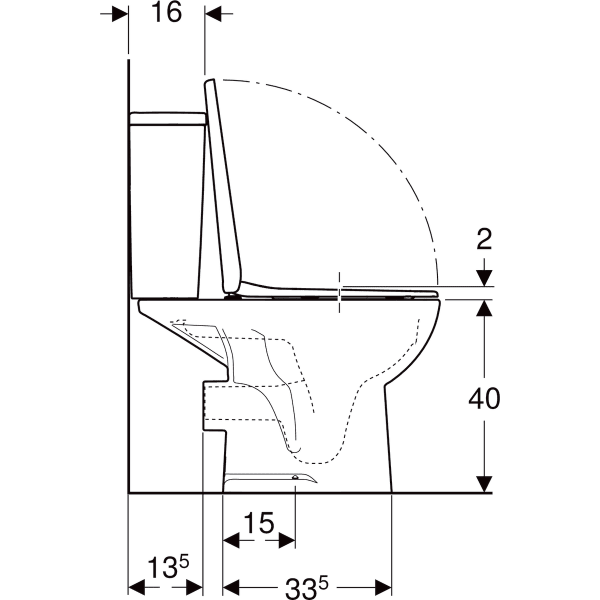

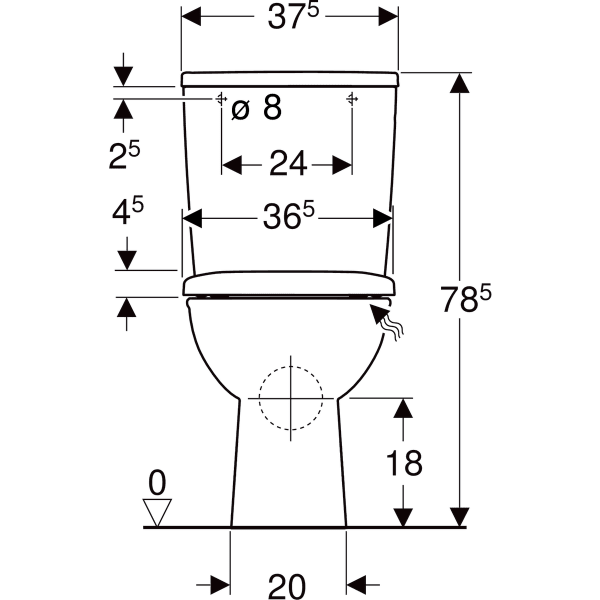

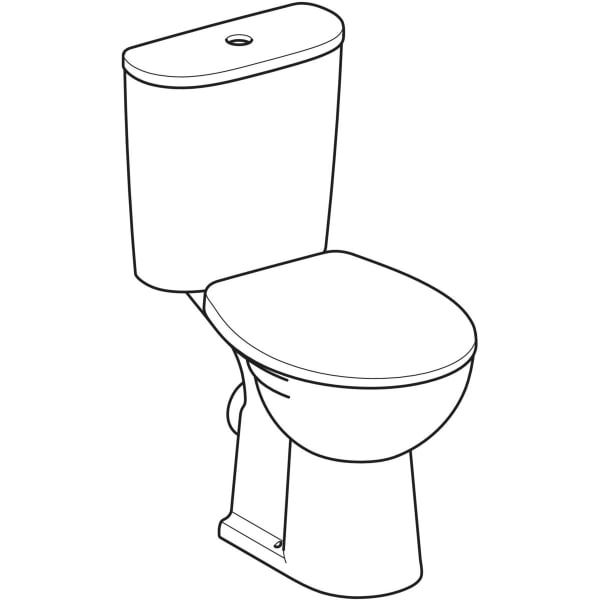

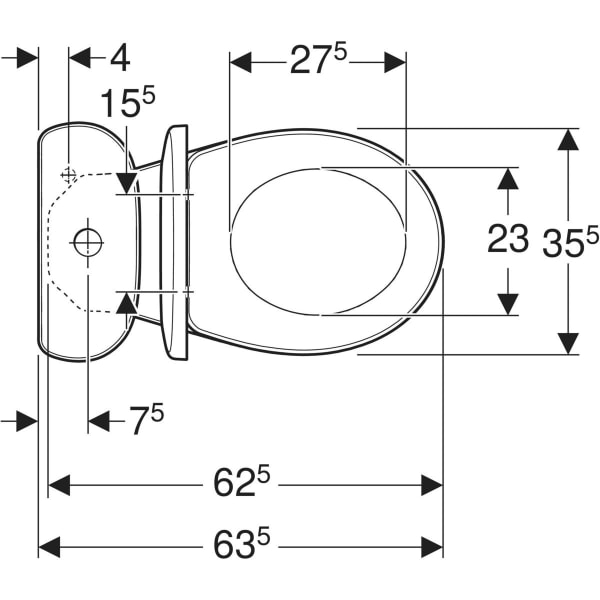

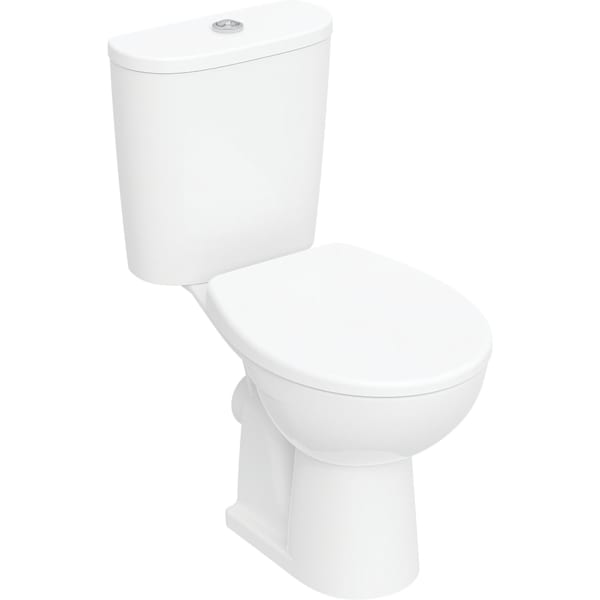

Twyford Alcona set of floor-standing WC with close-coupled exposed cistern, washdown, horizontal outlet, with WC seat
My list (0)
Technical data
Product material Vitreous china |
Product material Vitreous china |
Characteristics
Click on a characteristic to search more products
Scope of delivery
WC ceramic appliance
WC seat
Cistern
Fastening material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Care instructions | WC and bidet seats, urinal lids | EN and 31 others | |
Declaration of performance | DoP10 WCs | EN and 29 others | |
Declaration of performance | DoP10 WCs | EN | |
Environmental product declaration | Ceramic appliance | - | |
Installation instructions | Type 240 flush valve, for dual flush | - | |
Installation instructions | Soft close | - | |
Installation instructions | Quick release | - | |
Installation instructions | Fastening from above | - | |
Installation instructions | L-fastening from below | - | |
Installation instructions | Fill valve type 380AG | EN | |
Installation notice | Flush valve settings | - | |
Maintenance manual | Type 240 flush valve | - | |
Maintenance manual | Type 323 fill valve | - | |
Technical data sheet | Settings for flush valve type 240, fill valve type 380 | - |
WC and bidet seats, urinal lids
EN and 31 others
DoP10 WCs
EN and 29 others
DoP10 WCs
EN
Ceramic appliance
Type 240 flush valve, for dual flush
Soft close
Quick release
Fastening from above
L-fastening from below
Fill valve type 380AG
EN
Flush valve settings
Type 240 flush valve
Type 323 fill valve
Settings for flush valve type 240, fill valve type 380
Other products
Spare parts
| # | Art. no. | Description |
|---|---|---|
| 1 | H003 | Twyford set of hinges for WC seat |
| 2 | ZH2122XX | Seal, 10.8cm diameter |
2 Articles
| # | Art. no. | Description |
|---|---|---|
| 1 | ZP6425XX | DIAPHRAGM WASHER (99B) |
1 Article
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | AR1248WH | Twyford Alcona floor-standing WC for close-coupled exposed cistern, washdown, horizontal outlet | AR1148WH | When replacing AR1148WH, the floor-standing WC and cistern must be replaced. (no retrofit) |
| 3 | AR2346WH | Twyford Alcona exposed cistern, close-coupled, dual flush, bottom water supply connection | AR2342WH | When replacing AR2342WH, the floor-standing WC and cistern must be replaced. (no retrofit) |
