| Art. no. | SF1249CP |
| Colour / surface | chrome / glossy |
| Mixer | without mixer |

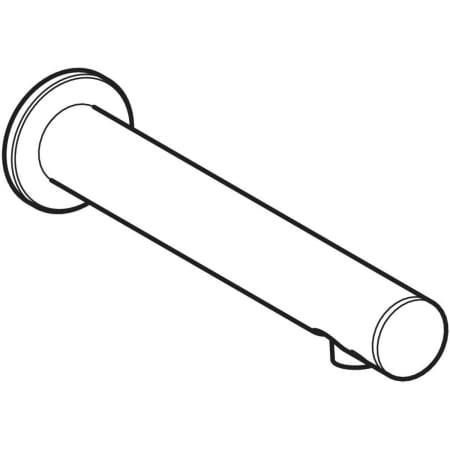

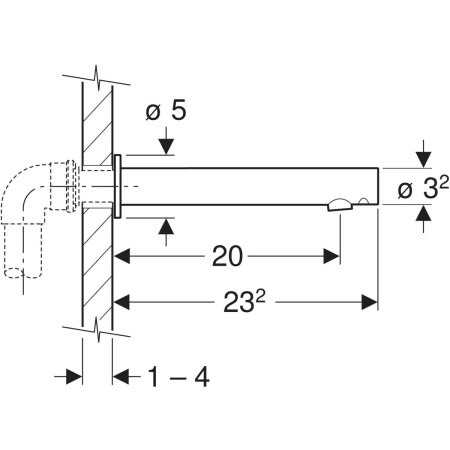

Twyford Sola washbasin tap, wall-mounted, mains operation
My list (0)
Technical data
Nominal voltage 230 V AC |
Operating voltage 6 V DC |
Operating pressure 0.5–5 bar |
Water test pressure max. 8 bar |
Test pressure air / inert gas max. 3 bar |
Ambient temperature 1–40 °C |
Storage temperature 5–70 °C |
Water temperature max. 60 °C |
Flow rate at 300 kPa / 3 bar 3.8 l/min |
Minimum flow pressure 0.5 bar |
Calculated flow rate 0.06 l/s |
Product material Brass / plastic |
Nominal voltage 230 V AC |
Operating voltage 6 V DC |
Operating pressure 0.5–5 bar |
Water test pressure max. 8 bar |
Test pressure air / inert gas max. 3 bar |
Ambient temperature 1–40 °C |
Storage temperature 5–70 °C |
Water temperature max. 60 °C |
Flow rate at 300 kPa / 3 bar 3.8 l/min |
Minimum flow pressure 0.5 bar |
Calculated flow rate 0.06 l/s |
Product material Brass / plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Battery
Power supply unit
To order additionally
Thermostatic mixer
