| Art. no. | SF1138CP |
| Colour / surface | chrome / glossy |
| Mixer | with thermostatic mixer |

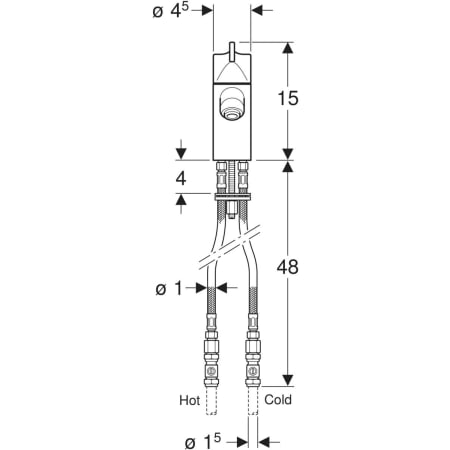

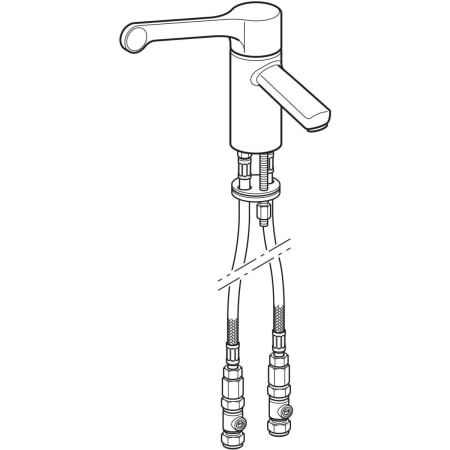

Twyford Sola washbasin tap, deck-mounted, single-lever thermostatic mixer, inlet reinforced braided hoses
My list (0)
Technical data
Operating pressure 0.5–10 bar |
Water temperature max. 85 °C |
Hot-water temperature max. 85 °C |
Flow rate at 300 kPa / 3 bar 3.8 l/min |
Product material Brass / plastic |
Operating pressure 0.5–10 bar |
Water temperature max. 85 °C |
Hot-water temperature max. 85 °C |
Flow rate at 300 kPa / 3 bar 3.8 l/min |
Product material Brass / plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | EN |
EN
Other products
Spare parts
| # | Art. no. | Description |
|---|---|---|
| 1 | SF0154CP | HANDLE(FOR SF1135/36/39CP) |
| 1.1 | SF0155CP | HANDLE INDICE FOR TMV3 MIXER & SHOWER |
| 2 | SF0150XX | TMV3 CARTRIDGE (FOR SF1135/36/37/38/39) |
