| Art. no. | OT2396WH |
| Colour / surface | white |
| B | 38 cm |

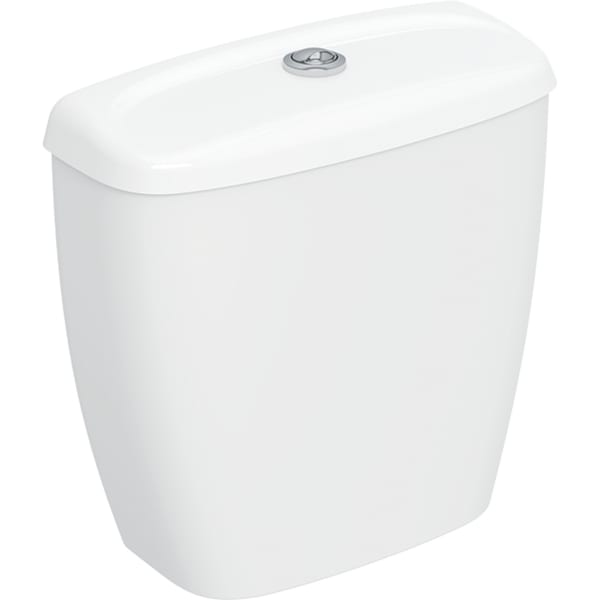

Twyford Option exposed cistern, close-coupled, for floor-standing WC raised
My list (0)
Technical data
Flush volume, factory setting 6 / 4 l |
Full flush volume, adjustment range 6 l |
Small flush volume 4 l |
Product material Vitreous china |
Flush volume, factory setting 6 / 4 l |
Full flush volume, adjustment range 6 l |
Small flush volume 4 l |
Product material Vitreous china |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Exposed cistern, close-coupled
To order additionally
WC ceramic appliance
Fastening material for rear wall
Can be combined with
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Declaration of performance | DoP10 WCs | EN and 29 others | |
Declaration of performance | DoP10 WCs | EN | |
Environmental product declaration | Ceramic appliance | - | |
Installation notice | Flush valve settings | - | |
Maintenance manual | Type 240 flush valve | - | |
Maintenance manual | Type 323 fill valve | - |
DoP10 WCs
EN and 29 others
DoP10 WCs
EN
Ceramic appliance
Flush valve settings
Type 240 flush valve
Type 323 fill valve
Other products
Spare parts
| # | Art. no. | Description |
|---|---|---|
| 1 | H003 | Twyford set of hinges for WC seat |
| 2 | ZH2122XX | Seal, 10.8cm diameter |
2 Articles
| # | Art. no. | Description |
|---|---|---|
| 1 | ZP6425XX | DIAPHRAGM WASHER (99B) |
1 Article
